规格参数
单位：mm

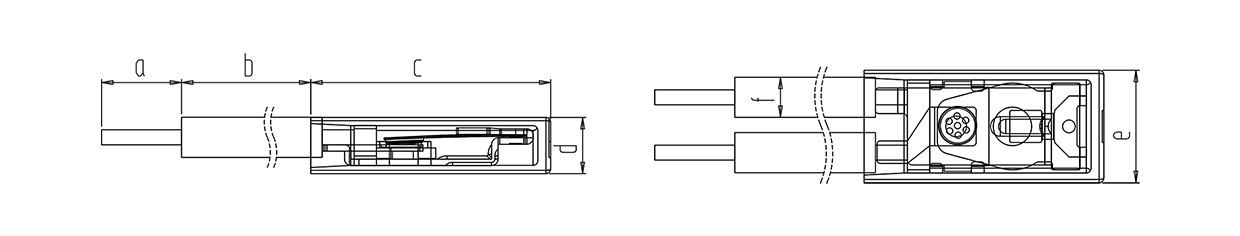

系列 | a | b | c | d | e | f | g |
CA05A | 7±2.0 | 53±2.0 | 15±0.5 | 3.0±0.5 | 6.4±0.5 | Ф1.9±0.2 | 23.0±1.0 |
Model NO | Functioning temp.(℃)断开温度（℃） | Resetting temp.(℃)复位温度（℃) | Ir(A) | Ur(Vac) |
CA05A50 | 50±5 | ≥35 | 5 | 250 |
8 | 125 | |||
CA05A55 | 55±5 | 40±8 | 5 | 250 |
8 | 125 | |||
CA05A60 | 60±5 | 42±8 | 5 | 250 |
8 | 125 | |||
CA05A65 | 65±5 | 45±8 | 5 | 250 |
8 | 125 | |||
CA05A70 | 70±5 | 50±12 | 5 | 250 |
8 | 125 | |||
CA05A75 | 75±5 | 55±15 | 5 | 250 |
8 | 125 | |||
CA05A80 | 80±5 | 55±15 | 5 | 250 |
8 | 125 | |||
CA05A85 | 85±5 | 60±15 | 5 | 250 |
8 | 125 | |||
CA05A90 | 90±5 | 65±15 | 5 | 250 |
8 | 125 | |||
CA05A95 | 95±5 | 70±15 | 5 | 250 |
8 | 125 | |||
CA05A100 | 100±5 | 70±15 | 5 | 250 |
8 | 125 | |||
CA05A105 | 105±5 | 75±15 | 5 | 250 |
8 | 125 | |||
CA05A110 | 110±5 | 75±15 | 5 | 250 |
8 | 125 | |||
CA05A115 | 115±5 | 80±15 | 5 | 250 |
8 | 125 | |||
CA05A120 | 120±5 | 80±15 | 5 | 250 |
8 | 125 | |||
CA05A125 | 125±5 | 85±15 | 5 | 250 |
8 | 125 | |||
CA05A130 | 130±5 | 90±15 | 5 | 250 |
8 | 125 | |||
CA05A135 | 135±5 | 95±15 | 5 | 250 |
8 | 125 | |||
CA05A140 | 140±5 | 100±15 | 5 | 250 |
8 | 125 | |||
CA05A145 | 145±5 | 105±15 | 5 | 250 |
8 | 125 | |||
CA05A150 | 150±5 | 110±15 | 5 | 250 |
8 | 125 |
UL | TUV | CQC |
E501140 | R 50426237 R 50427822 | CQC19002212338 |
